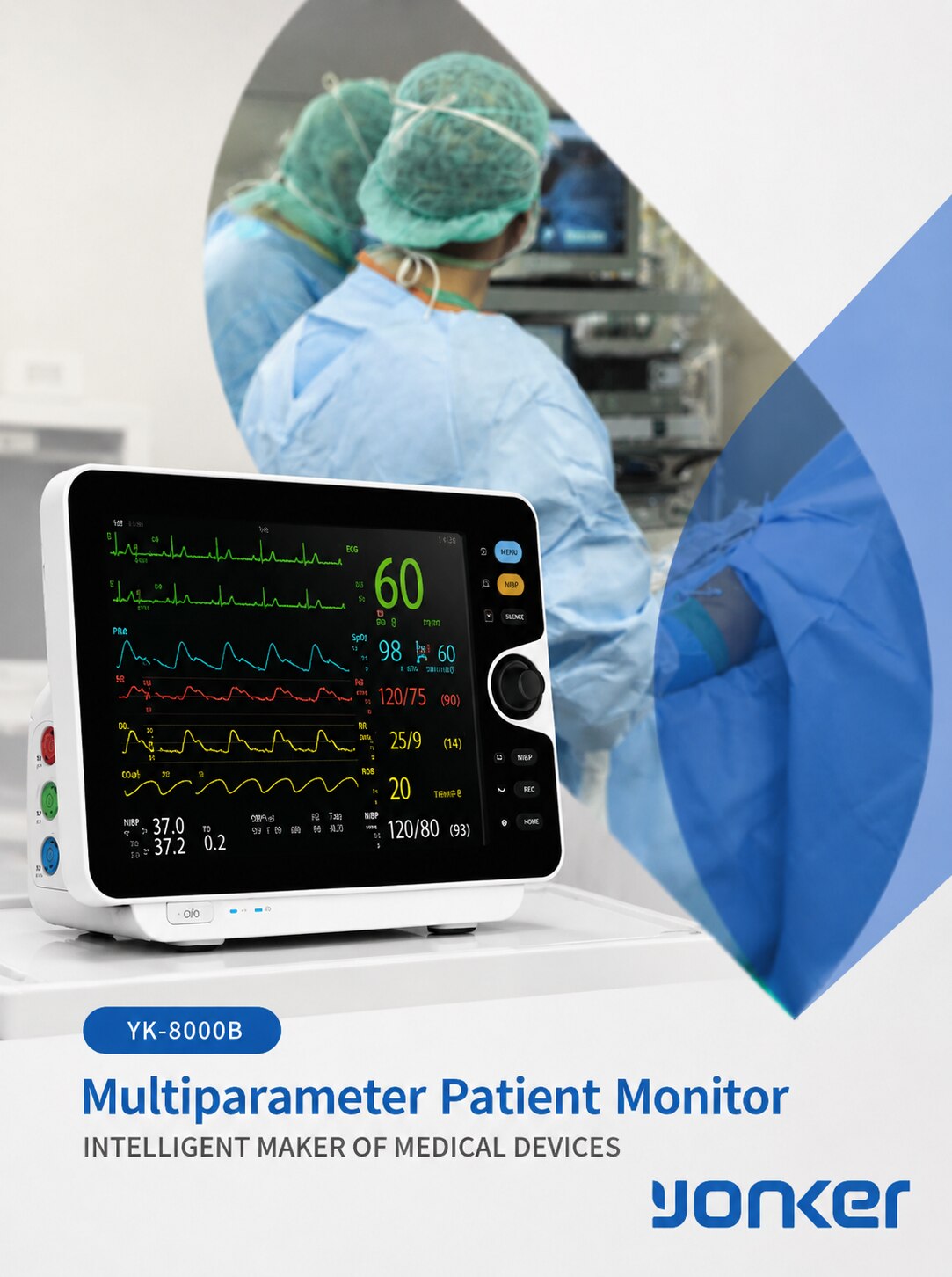

Product Overview Brand: Yonker Model: YK-8000B Type: Multiparameter Patient Monitor Applications: Adult Pediatric Neonatal Medicine Surgery Operating Room (OR) ICU CCU Display 12.1-inch TFT color display Monitored Parameters ECG SpO₂ (Oxygen Saturation) NIBP (Non-invasive Blood Pressure) Pulse Rate Heart Rate Respiration Rate Temperature ECG Specifications Supports 3/5 lead ECG Waveform speed: 12.5, 25, 50 mm/s Heart rate monitoring Arrhythmia detection ST segment analysis Diagnostic bandwidth: 0.05–130 Hz SpO₂ Measuring range: 0–100% Resolution: 1% Accuracy: 70–100%: ±2% Below 70%: Not specified Pulse Rate Range: 30–300 bpm Accuracy: ±3 bpm Heart Rate Adult: 15–300 bpm Neonatal/Child: 15–350 bpm Accuracy: ±1% or ±1 bpm Respiration Adult: 0–120 breaths/min Neonatal/Child: 0–150 breaths/min Temperature Range: 0–50°C Resolution: 0.1°C Accuracy: ±0.1°C (excluding sensor error) Blood Pressure (NIBP) Adult Systolic: 40–270 mmHg Diastolic: 10–215 mmHg Mean: 20–235 mmHg Pressure accuracy: ±3 mmHg Trend Storage 400 trend groups 6000-second waveform storage 7-day trend table 70 alarm records Electrical Specifications Power Supply: AC 100–240V, 50/60 Hz Internal lithium battery Continuous working time: approximately 2 hours Operating Environment Temperature: 0–40°C Humidity: ≤85% RH Size & Weight Dimensions: 262 × 336 × 84 mm Weight: 2.72 kg Standard Accessories NIBP cuff & tube ECG cable & electrodes SpO₂ sensor Temperature probe Lithium-ion battery Power cable User manual Optional Accessories End-tidal CO₂ (EtCO₂) Recorder Dual IBP Nellcor SpO₂ module This monitor is designed for continuous monitoring of a patient's ECG, blood pressure, oxygen saturation, pulse, respiration, and temperature, making it suitable for hospitals, ICUs, operating rooms, emergency departments, and clinics. Storage & Review ECG waveform storage: 30 minutes (one important lead) Alarm event review: 1800 alarm records NIBP measurement storage: 400 groups Arrhythmia storage: 128 groups (8-second ECG waveforms) Optional off-storage: 72 hours trend data 1 ECG waveform ECG Features Standard: 5-lead ECG Optional: 3-lead or 12-lead ECG Lead selection: I, II, III aVR, aVL, aVF V1–V6 (optional) Gain settings: Auto 0.25× 0.5× 1× 2× 4× Sweep speeds: 6.25 mm/s 12.5 mm/s 25 mm/s 50 mm/s Heart Rate: Adult: 10–300 bpm Child/Neonate: 10–350 bpm Accuracy: ±1% or ±1 bpm IBP (Optional) 2-channel Invasive Blood Pressure Range: −50 to +300 mmHg Units: mmHg kPa Accuracy: ±2 mmHg or 2% Alarm System Three alarm priorities: Low Medium High Alarm indication: Audible Visual User-selectable alarm settings Alarm silence (mute) supported Alarm volume: 45–85 dB (measured at 1 meter) Thermal Recorder (Optional) Recording method: Thermal dot array Paper width: 50 mm Paper speed: 12.5 / 25 / 50 mm/s Maximum traces: 3 channels EtCO₂ (Optional) Measurement range: 0–19.7% 0–150 mmHg Units: % mmHg kPa Respiration rate: 2–150 bpm Hardware Features Dual alarm lights Physiological alarm Equipment alarm Large, high-visibility indicators All-in-one monitoring ECG RESP SpO₂ NIBP 2 Temperature channels (standard) Optional modules: 9-lead ECG 2-channel IBP Cardiac Output (CO) EtCO₂ (Sidestream/Mainstream/Microstream) Connectivity Supports: Ethernet networking Defibrillation synchronization output Nurse call interface Optional outputs: Analog output USB VGA display output Optional Wireless & Recorder Built-in 3-channel thermal recorder Optional Wi-Fi module Supports wireless hospital networking and patient transport. Central Monitoring System The monitor supports networking with a central monitoring station, allowing: Wireless connection to the central station Up to 240 hours of trend data Display of 8 waveforms per monitor Monitoring of up to 16 monitors on one screen Viewing of up to 32 beds on one platform Remote review and management of patient data in real time.
