Description

Product details

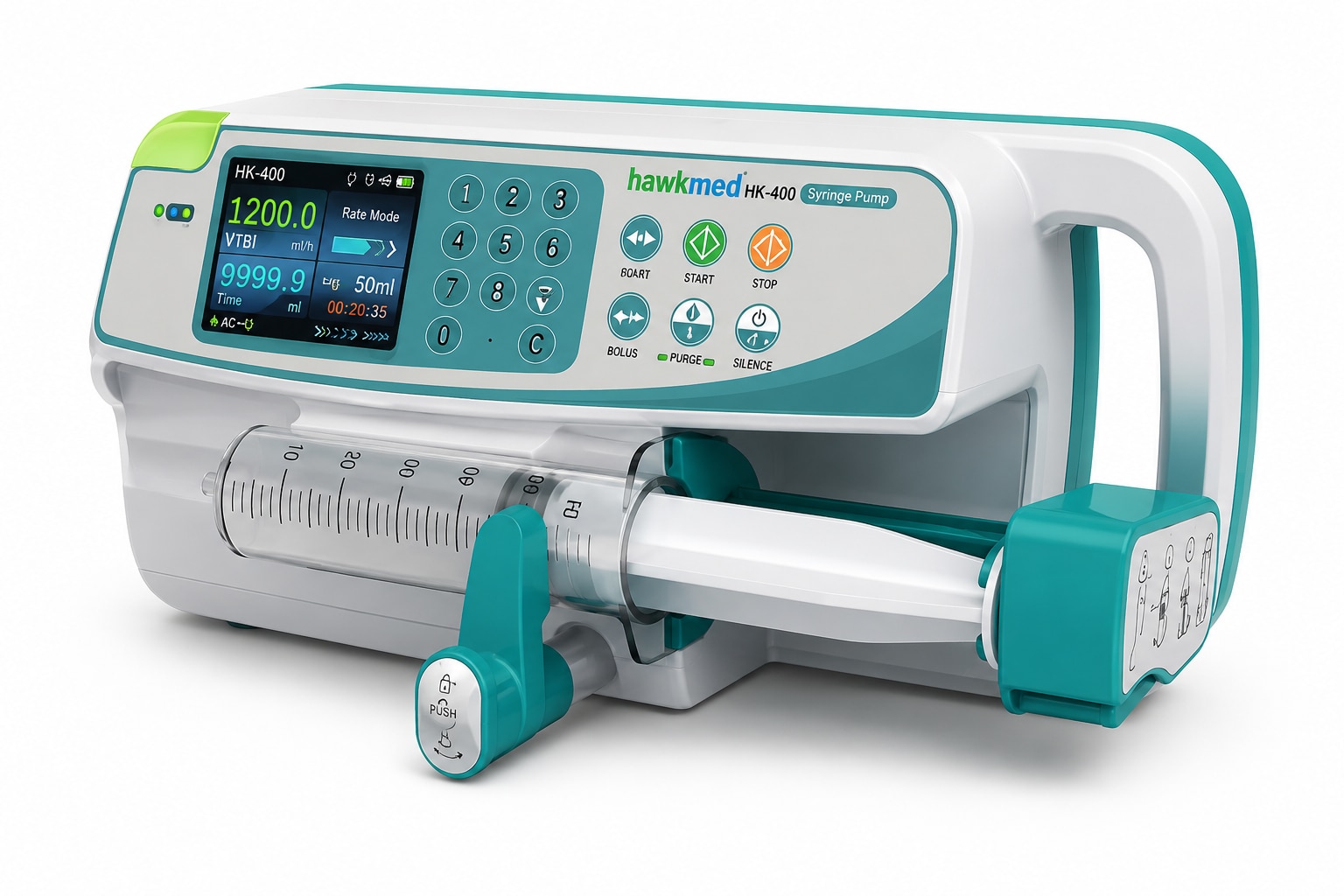

Product Description The HK-400 Syringe Pump is a high-precision infusion device designed for accurate and continuous delivery of medications and fluids. It is suitable for use in ICUs, operation theatres, emergency departments, neonatal care, and general hospital wards. The pump features a large color LCD screen, intelligent syringe recognition, multiple infusion modes, and comprehensive visual and audible alarm systems for safe and reliable operation. Features Large color LCD display with clear parameter visibility Intelligent syringe self-recognition technology Compatible with 5 ml, 10 ml, 20 ml, 30 ml, 50 ml, and 60 ml syringes KVO (Keep Vein Open) function Bolus infusion function Multiple infusion modes for different clinical applications Numeric keypad for easy operation Real-time infusion data display Three adjustable occlusion pressure levels Night mode for low-light environments Double CPU design for enhanced safety and reliability Visual and audible alarm indicators Rotatable pole clamp for easy mounting Technical Specifications Display: Large color LCD screen Syringe Sizes: 5, 10, 20, 30, 50, and 60 ml Infusion Modes: Continuous, Bolus, KVO, and various programmable modes Alarm System: Visual and audible alarms Occlusion Levels: 3 adjustable pressure settings Mounting: Rotatable pole clamp Safety: Dual CPU control system Power Supply: AC power with built-in rechargeable battery (model dependent) Applications Intensive Care Unit (ICU) Operation Theatre (OT) Emergency Department Neonatal Intensive Care Unit (NICU) Pediatric Ward General Hospital Wards Ambulance and Patient Transport Clinics and Nursing Homes HK-400 Syringe Pump – Technical Specifications Infusion Modes Rate Mode Time Mode Body Weight Mode Intermittent Infusion Mode (Optional) Drug Library Mode (Optional) Syringe Compatibility Compatible with standard sterile syringes: 5 ml 10 ml 20 ml 30 ml 50 ml 60 ml Accuracy ±2% (after syringe calibration) Infusion Rate 5 ml syringe: 0.1–150 ml/h 10 ml syringe: 0.1–300 ml/h 20 ml syringe: 0.1–600 ml/h 30 ml syringe: 0.1–900 ml/h 50/60 ml syringe: 0.1–1500 ml/h VTBI (Volume to be Infused) 0–1000 ml Volume Infused 0–9999.9 ml KVO Rate 0.1–2 ml/h (adjustable) Default setting: 0.1 ml/h Bolus Rate 5 ml syringe: 100–150 ml/h 10 ml syringe: 100–300 ml/h 20 ml syringe: 100–600 ml/h 30 ml syringe: 100–900 ml/h 50/60 ml syringe: 100–1500 ml/h History Record Stores up to 1600 infusion records Communication Interface RS232 communication port Alarm System Syringe disconnected Infusion completed Near completion Empty syringe Occlusion Low battery Handle open AC power failure Running on battery Battery exhausted Power Supply DC Input: 12 ± 1.2 V AC Input: 100–240 V, 50/60 Hz Power Consumption 25 VA Optional Functions Nurse Call Interface Wireless Monitoring System Safety Classification Class I, Type CF Dimensions 300 × 130 × 125 mm (L × W × H) Net Weight 1.8 kg Protection Rating IPX3 Occlusion Pressure 40–160 kPa Three adjustable levels: Low Medium High Battery Rechargeable Li-Polymer Battery 7.4 V, 1900 mAh Battery Performance Charging Time: 10 hours (unit off), 3 hours (unit on) Operating Time: Approximately 7 hours at 25 ml/h Operating Conditions Temperature: 5°C to 40°C Relative Humidity: 10%–95% Atmospheric Pressure: 86–106 kPa Transport Conditions Temperature: -20°C to 60°C Relative Humidity: 10%–95% Atmospheric Pressure: 50–106 kPa Storage Conditions Temperature: -20°C to 45°C Relative Humidity: 10%–95% Atmospheric Pressure: 50–106 kPa
