Description
Product details

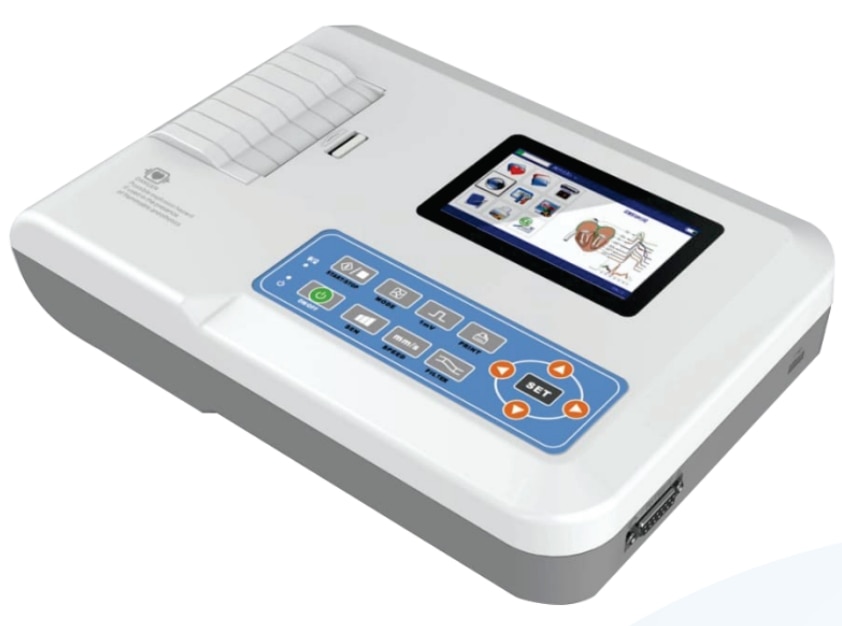

General Features AC/DC Operated 3 channel ECG with Interpretation Rechargeable Lithium Battery Battery backup :Approx.1.5 hours (with continuous printing) Simultaneous display 3/6/12 leads ECG waveform and can remark the lead sign, sensitivity paper speed and filter state Data interpretation It can store more than 100 patient's datalCases), more convenient for data review& statistics Portable, Light weight and sturdy design Mode of printing: Automatic/Manual #3.5" LCD Display #Power Supply AC: 100 — 240V, 50/60 Hz DC: 7.4V, 3700 mAh rechargeable lithium battery #Input way Floating and defibrillation protection #Lead :12 leads #Patient leak current : ≤ 10µA #Frequency response : 0.05Hz ~150Hz (~3 dB ~ 0.4 dB) #Time Constant Time ≥ 3.2s #CMRR, ≥ 60 dB, .≥100 dB (add filled #EMG interference filter: 35Hz (-3dB) #AC Filter : 50/60Hz #Sampling Rate : 1000Hz #Recording way : Thermal printing system #Recording papers : 8Omm (W) X 20 m(L) #Paper Speed Auto record: 25mm/s, 50mm/s Manual record : 5, 10, 25, 50mm/s Rhythm Record : 25mm/s, 50mm/s Classification : Class I, CF applied part #Enduring polarization voltage : ±500mV #Sensitivity choice : 5, 10, 20 mm/mV {Error: ±5%) #Standard sensitivity is 10mm/mV ±0.2% #Auto Interpretation #Fuse Specification : 2pcs (5*20mm AC time lags) T1.6AL250V (Power Supply : 220V) #Machine Size: 315 (L) x 215 (W) x 77(H) mm #Machine Net Weight :1.7Kg 3 CHANNEL ECG Model No. CMS 300G Technical Specifications # 4*3 #Auto 3*4 +1 # Auto 3*4 # Auto 2*6 +1 # Auto 2*6 # Auto3-2+1 # Auto3-2 # Rhythm 4 # Rhythm 3 # Rhythm 2 # Manual mode #Measurement parameter HR, P-R interval P Duration, ORS Duration, O Interval, O-Tc, P Axis, ORS Axis, T Axis, RIV51, SIV1I, RIV5I + SIV1I #Recording : Auto and Manual Optional # Touch screen # Basic software : For data transfer & print # a Advance software : For cardiac analysis
