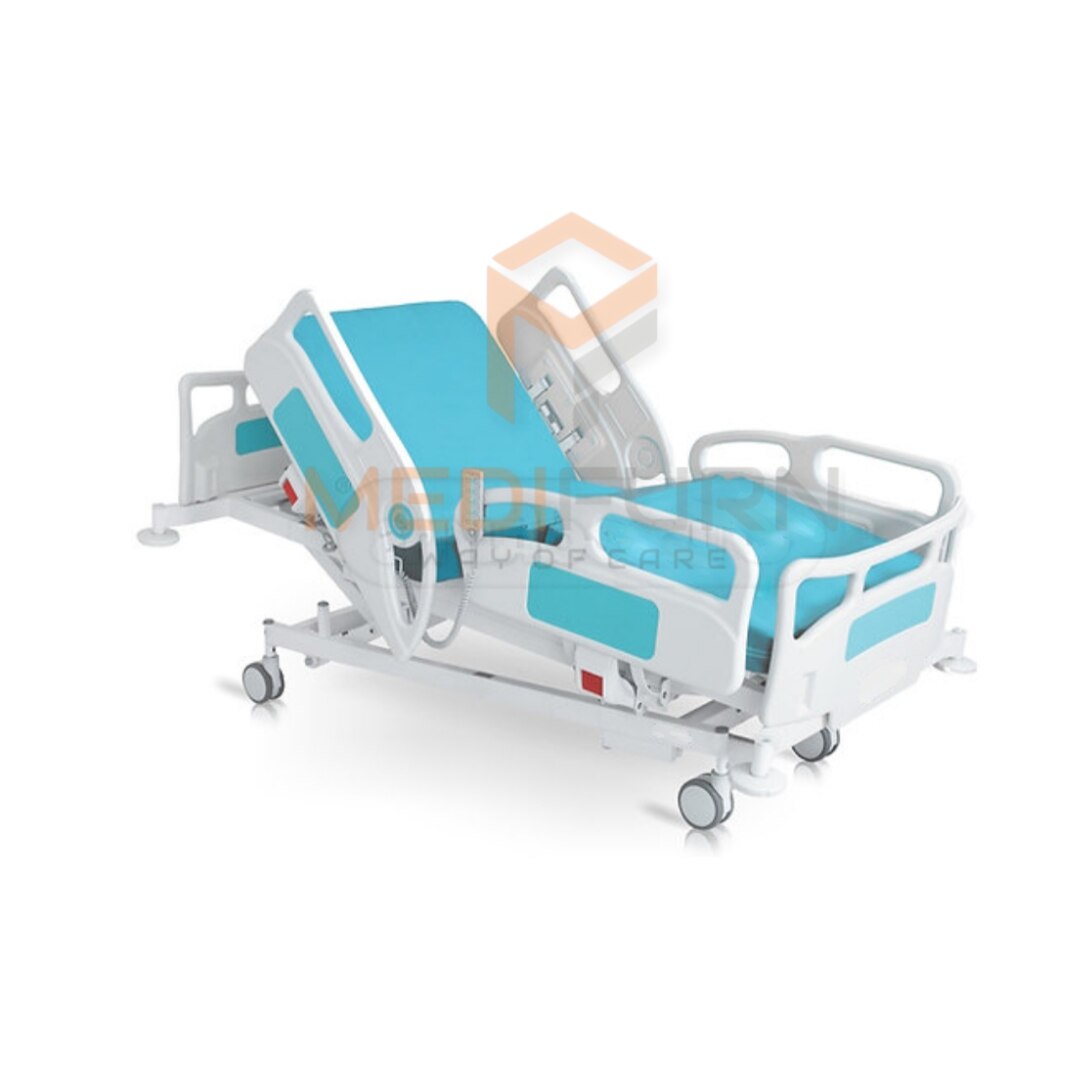

FIVE FUCTION ELECTRIC ICU BED

Buffer to Buffer 2145 mm x 1055 mm

Mattress Platform 1885 mm x 870 mm

Backrest 0° - 85°

Max. Height (Incl. Mattress) 910 mm

Min. Height (Incl. Mattress) 545 mm

Trendelenburg 17°

Knee-rest 0° - 35° Reverse Trendelenburg 18°

Specifications

• The Height, Backrest, Kneerest, Trendelenburg and Reverse Trendelenburg adjustments are done

with the help of a sophisticated remote controller.

• The bed functions through quiet and super smooth electric motors. Calf elevations can be adjusted

manually using ratchet.

• Newly designed split type ABS side rails with angle indicators assist in seting the desired posission

for the patient.

• The curved ABS head and foot boards can be removed for easy cleaning and other necessary

procedures.

• 5” Heavy duty castor wheels with brakes on adjacent side, buffers for shock absorption. Central

locking optional

• The bed comes with a 4” High density mattress with Antimicrobial, Flame retardant and water

repellent properties.

• The mattress is four sectional for easy adjustments. Urine bag holder & heavy duty I.V. pole provid-

ed.

• Height adjustable stainless steel IV pole with provision for IV pole on all four corners of the bed is provided as a standard.
